Although the DIY world has always been no shortage of trench horizontal big brother, but after all, most of the players like us can not drum up their pockets. Thanks to the Huang's sword again new tricks, in the past six months, "Lu Bu riding a dog" configuration endless. In the past, high U with high display is no longer zzzzq, instead of mid-range U with high-end graphics cards gradually popular. This wave of reversal is really letting the old players always look at the novice installed fun, also had to sigh a "clown is actually their own".
No way, limited by the budget this installation in addition to i5 12400F plus 4070 SUPER monstrous combination, other peripherals are also in line with the principle that can save a little bit is a little bit. Take the chassis, hundreds of thousands of is certainly good, but the 100 yuan grade more cost-effective is not. But what I did not expect is that after some searching, actually really in this gear to find a "finishing touches". U1S1, SOEYI Phoenix U320 soul of the small handles and minimalist design out of the fruit powder should not feel strange it.
Installation show

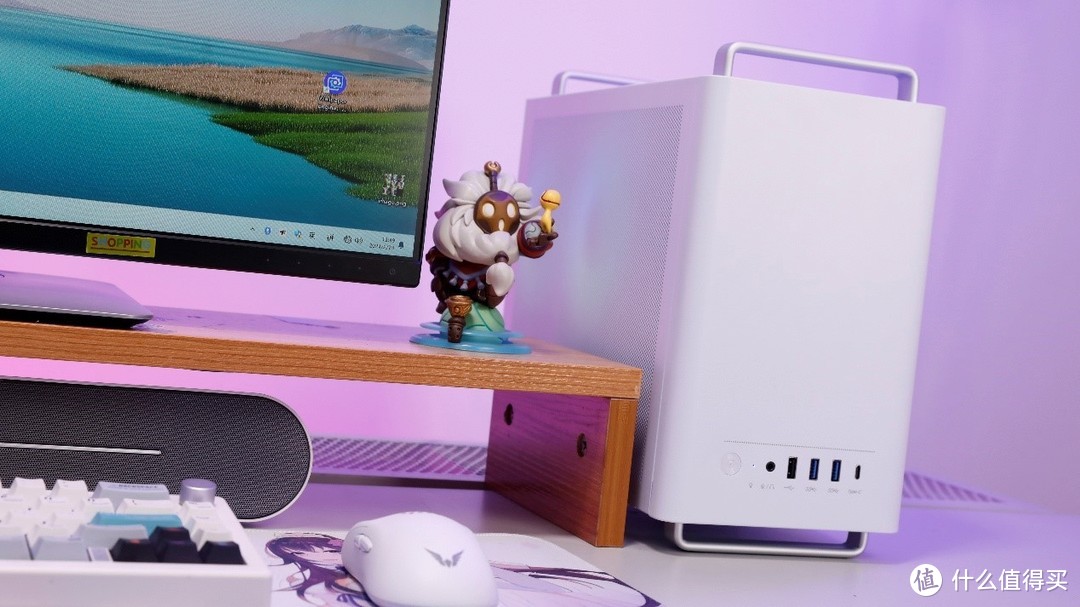

After aesthetic fatigue in a variety of seascape room, and then look back at this calm and introverted minimalist design, do not say, there is really a kind of traveller to his hometown, the feeling of home. The size of 350mm long, 165mm wide and 265mm high belongs to the standard MATX specifications, not only can take into account the expandability and heat dissipation, but also very good control of the desktop space occupation, of course, the cost-effective aspects are also proper. U320 provides black and white two colours to choose from, this year's installation of the machine that must be preferred to white it.

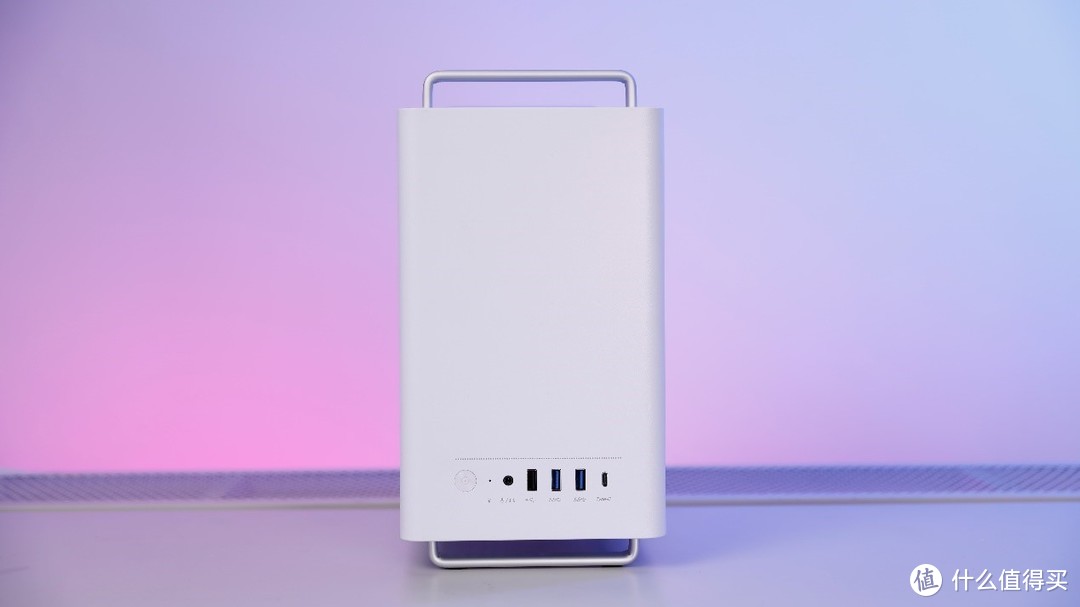

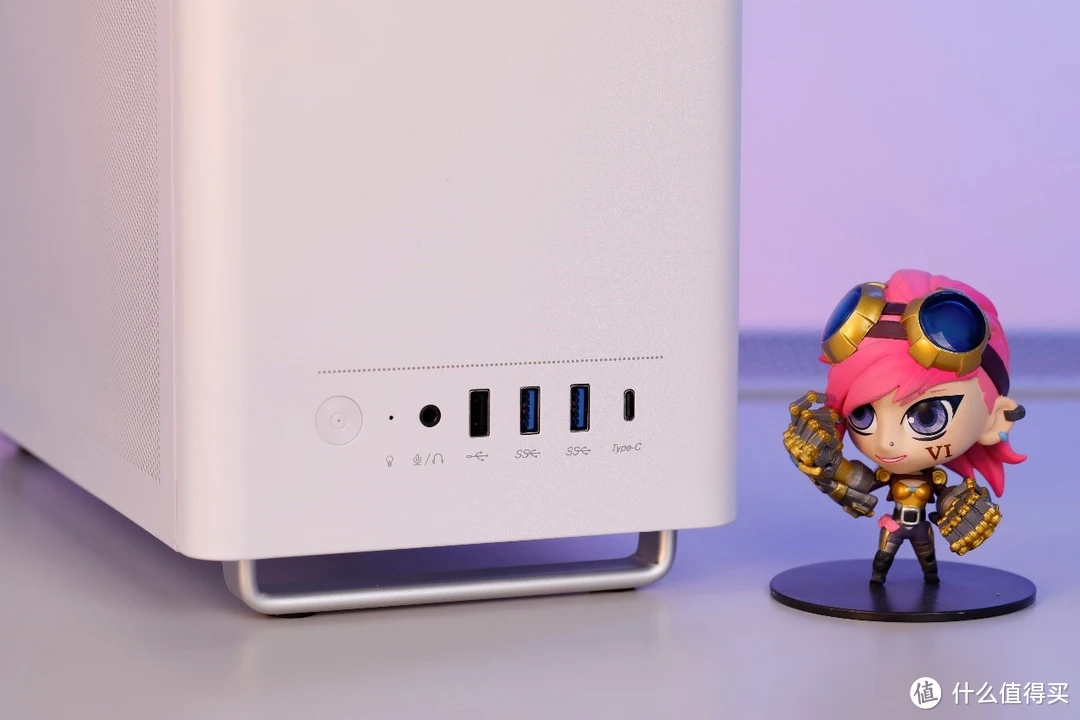

The front of the chassis with a large area of white, and the design of a dotted dotted line will be the bottom of the I / O interface area for division, the overall highlight of a minimalist aesthetic. Interface U320 to the relatively rich, from left to right, respectively: headset, USB 2.0, two USB 3.0, and a Type-C, to meet the needs of all kinds of external is not a problem.

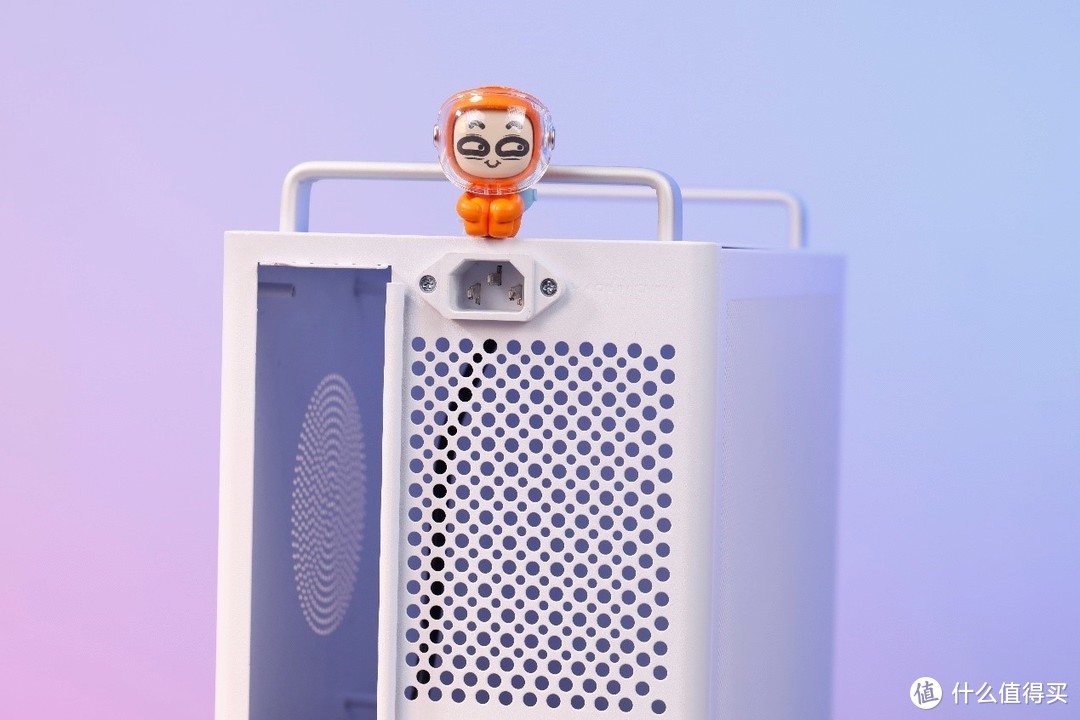

The back panel also features a large white area, with the difference being that the upper right portion is designed with round and long cooling holes behind the CPU and at the bottom, respectively, for embellishment and heat dissipation.
As we all know, the size of the hole can directly affect the air flow rate, and the rear window of the U320 is specially designed to do a unique size of the perforation, which can not only enhance the air circulation to help improve the cooling performance, but also ensure the structural strength to avoid deformation. After a strong friend's test, press the rear window only slightly deformed.

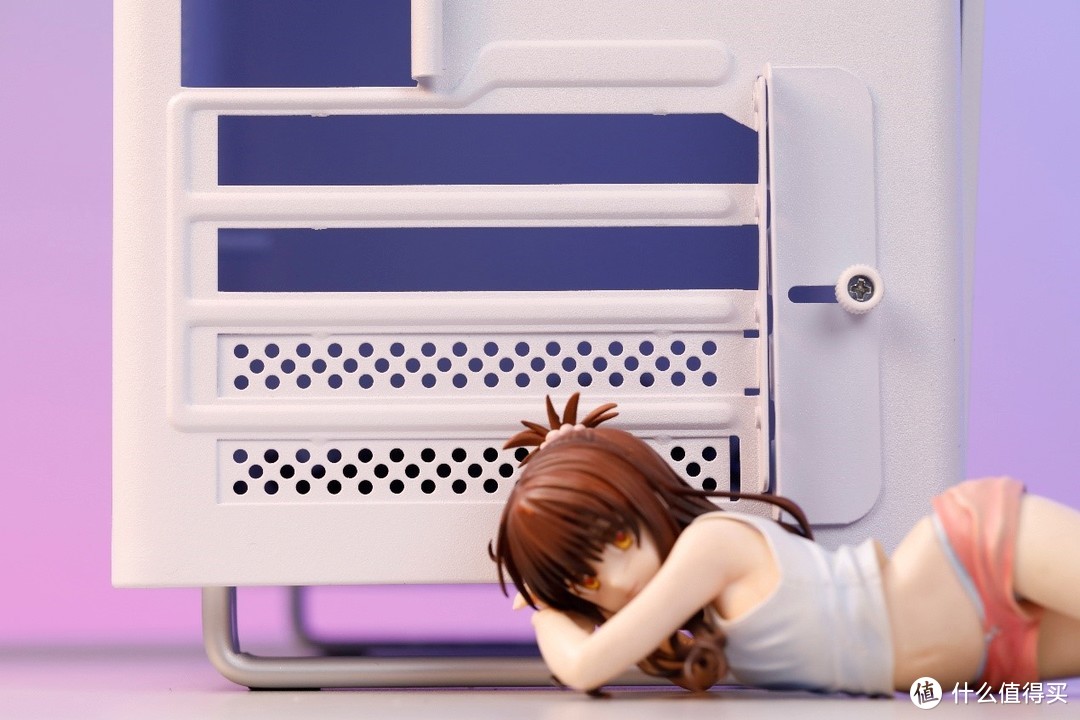

Down below are four slots of PCIe, with redundant space for devices such as NICs and sound cards in addition to the graphics card.
It is worth mentioning that the U320 utilises an innovative unibody process to create a sturdy U-shaped structure for the front, back and rear panels, which not only improves the strength of the entire machine, but also provides further value with fewer splicing gaps and rivets.

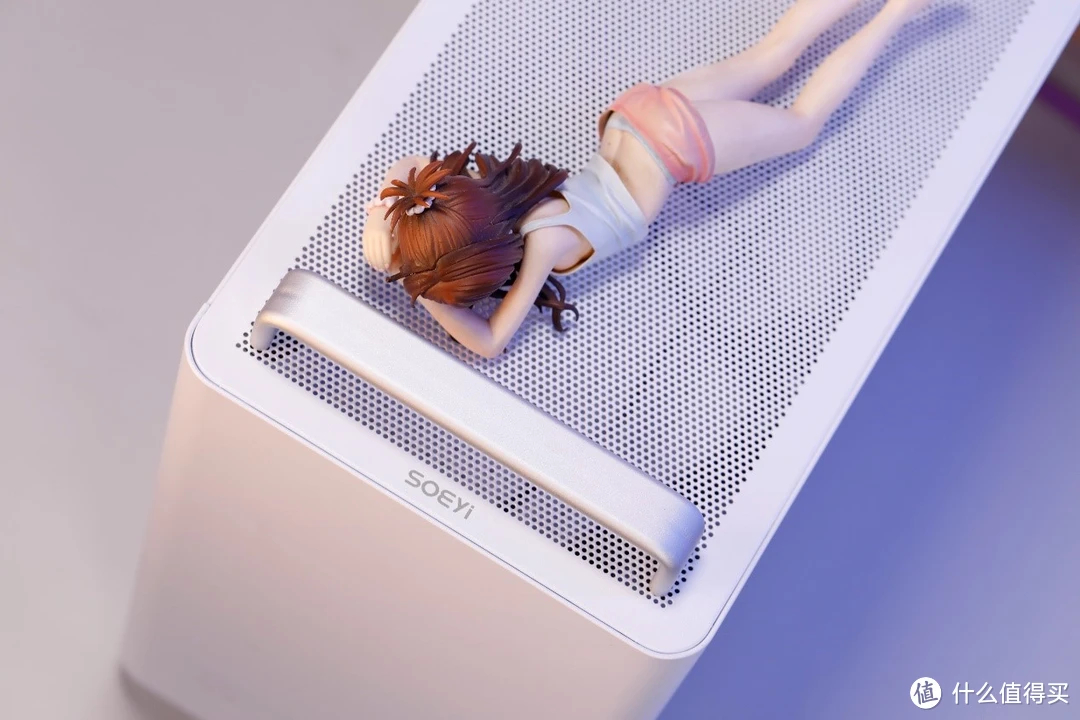

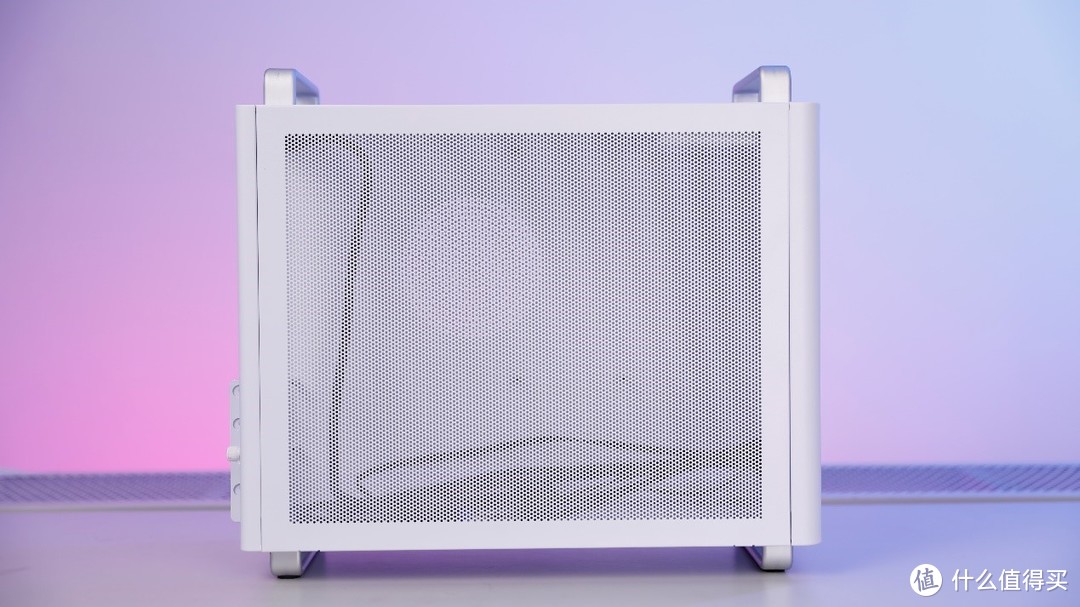

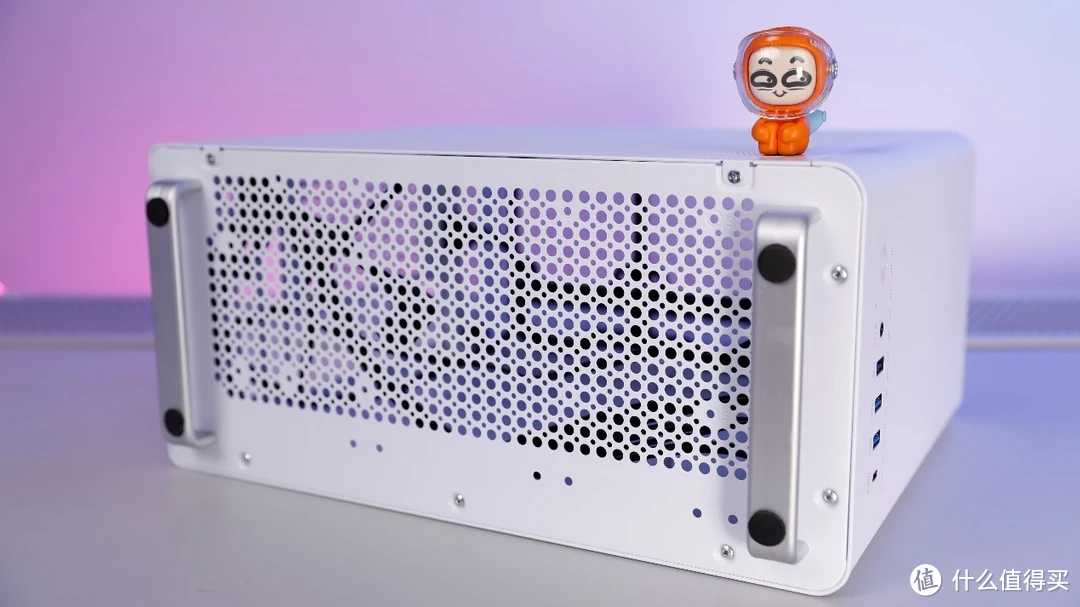

In addition, the top, bottom and side panels all feature large cooling holes to enhance heat dissipation, with the bottom panel featuring the same perforated design as the rear window, while the side panels offer both mesh and tempered glass options. Since I like the hazy look, I'll forgo the glass this time around.
The U320 can have up to 6 fans installed, with the top supporting 2 x 8CM or 9CM (with fan bracket as standard), the back panel supporting one 8CM or 9CM, and the bottom supporting 3 x 9CM or 2 x 12CM fans. However, the bottom belongs to the shared location of fans and hard drives, so you can choose different combinations according to your needs.

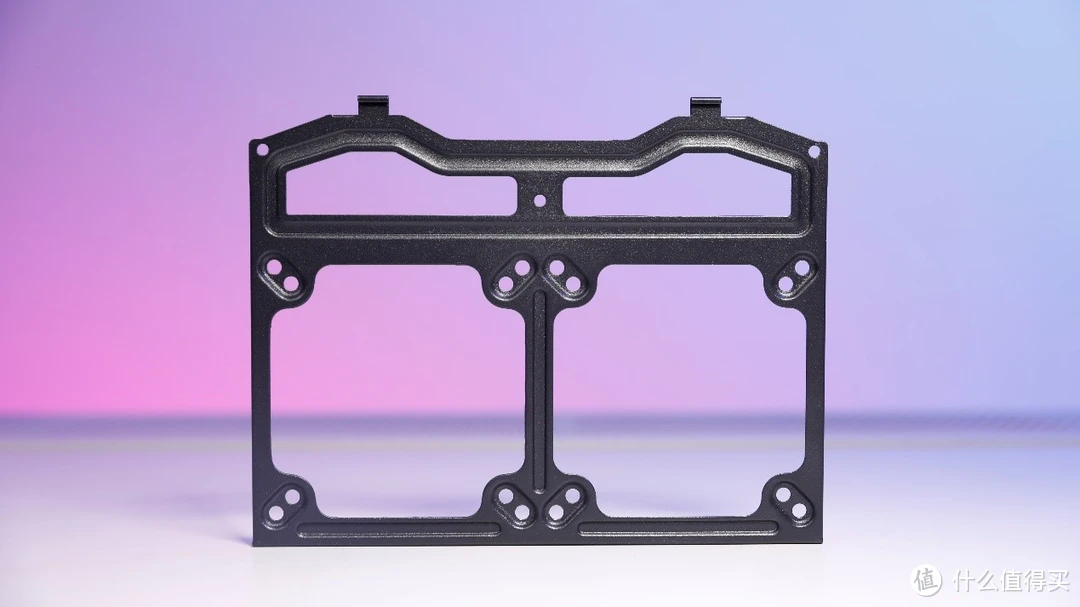

Chassis top fan bracket.

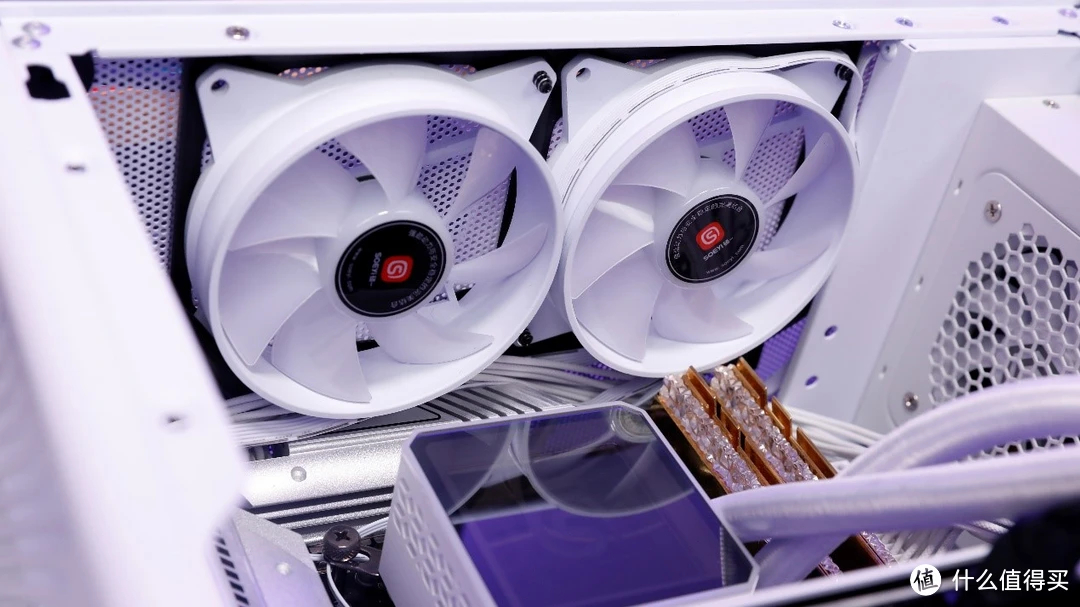

Opening the side panels to access the interior, the U320 also performs well in terms of hardware compatibility. It supports MATX and ITX motherboards, downdraft air-cooling (limited to 135mm) or 240 water-cooling (with water-cooling bracket as standard), regular ATX or SFX small power supplies (with power supply bracket as standard), and graphics cards up to 310mm in length.
In terms of storage expandability, in addition to the M.2 SSD slot on the motherboard, the bottom of the chassis and the lower-right position of the side panel additionally supports the installation of three 2.5-inch SSDs or two 2.5-inch SSDs + one 3.5-inch mechanical disc, which can easily meet the storage needs of most users.

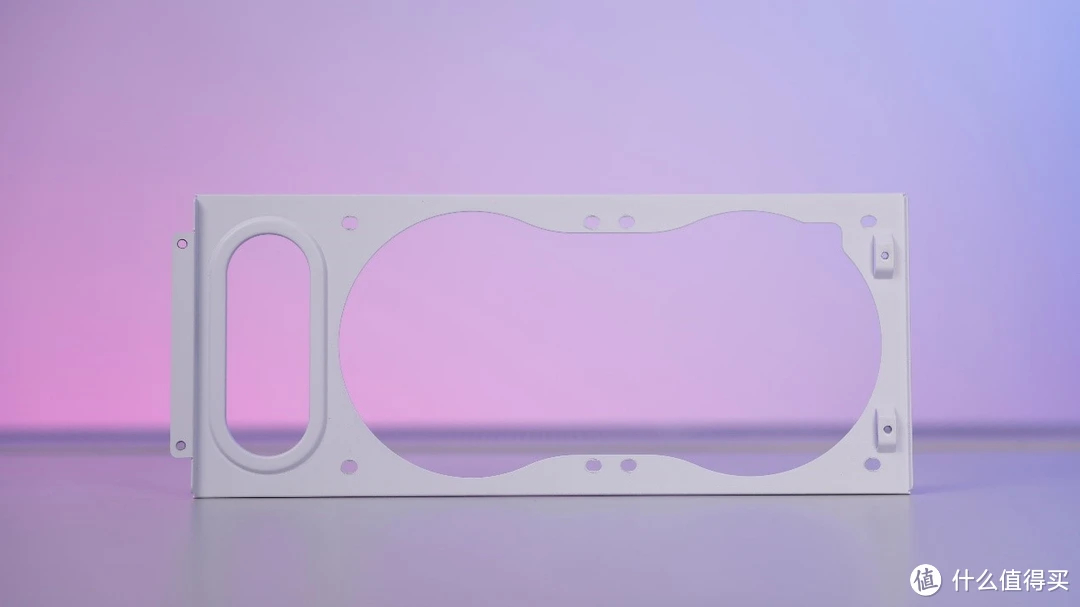

240 water cooling bracket.

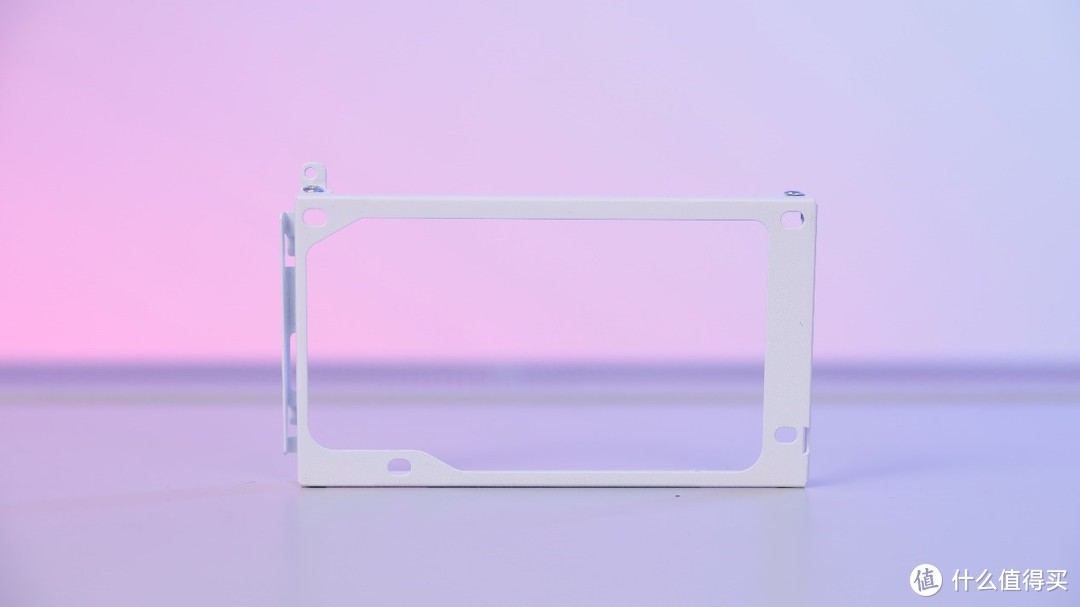

ATX power supply bracket.
SFX power supply bracket.
Although in the era of involution, but as a hundred yuan price of SOEYI U320 still gave me some surprises, such as boldly enabling innovative technology and design, can resist and can fight the workmanship and value, excellent expandability and hardware compatibility, as well as the standard complete with all kinds of accessories. Not only for the user to provide a high-quality product experience, but also to enjoy the diversity of DIY fun, I think this is the majority of players installed the purpose of the machine.
